Description

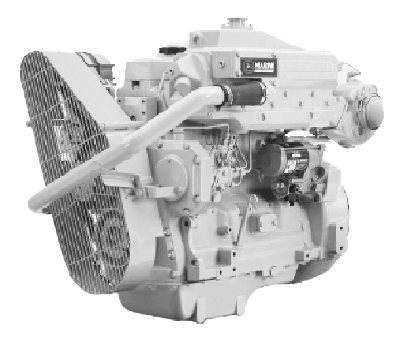

Product Specification Listing for Marine Engine: JOHN DEERE PowerTech 4045TFM50 - M3 - 135 HP
General Information:
- Model: PowerTech 4045TFM50 - M3
- Manufacturer: John Deere
- Power Output: 135 HP (101 kW)
- Engine Type: 4 Cylinder, 4.5 L Turbocharged Diesel Engine
Engine Specifications:
- Displacement: 4.5 Liters (276 cubic inches)
- Bore and Stroke: 106 mm x 127 mm (4.17 in x 5.00 in)
- Rated Speed: 2400 RPM
- Aspiration: Turbocharged
- Cooling System: Heat Exchanger
- Fuel System: High Pressure Common Rail (HPCR)
- Emission Level: EPA Marine Tier 2, IMO Tier II
Dimensions and Weight:
- Length: 993 mm (39.1 in)
- Width: 711 mm (28.0 in)
- Height: 1057 mm (41.6 in)
- Weight (Dry): 614 kg (1354 lbs)
Performance and Efficiency:
- Maximum Torque: 480 Nm (354 lb-ft) at 1400 RPM
- Fuel Consumption: Specific fuel consumption at rated power is 210 g/kWh (0.346 lb/hph)
Electrical System:
- Voltage: 12V or 24V options available
- Alternator: 12V 63Amp or 24V 40Amp
Additional Features:
- Engine Monitoring System: John Deere Engine Electronic Control Unit (ECU)
- Start System: Electric Start, with provision for manual start in emergency
Applications:
- Vessels: Suitable for a variety of marine vessels including fishing boats, tugs, trawlers, and other commercial craft.
Compliance and Warranty:
- Certifications: Meets EPA Marine Tier 2 and IMO Tier II emission regulations
- Warranty: Standard 1-year limited warranty with options for extended coverage
Installation and Maintenance:
- Ease of Installation: Designed for straightforward installation with user-friendly connections
- Maintenance: Simplified maintenance with easily accessible service points, reduced downtime
Optional Accessories:
- Control Panels: Analog and digital control panels available
- Exhaust Components: Wet and dry exhaust options
- Cooling System Components: Sea water pumps, raw water strainers
Contact and Support:
- Customer Support: Contact your local John Deere dealer or visit the John Deere Marine website for support.
- Spare Parts Availability: Extensive network for availability of genuine spare parts and accessories.
For more detailed technical specifications and installation guidelines, please refer to the official John Deere PowerTech 4045TFM50 - M3 Marine Engine Manual or contact your local John Deere marine engine distributor.
