Down Angle Gearbox Developed to the Next Level
·By Posted by Michelle Howard

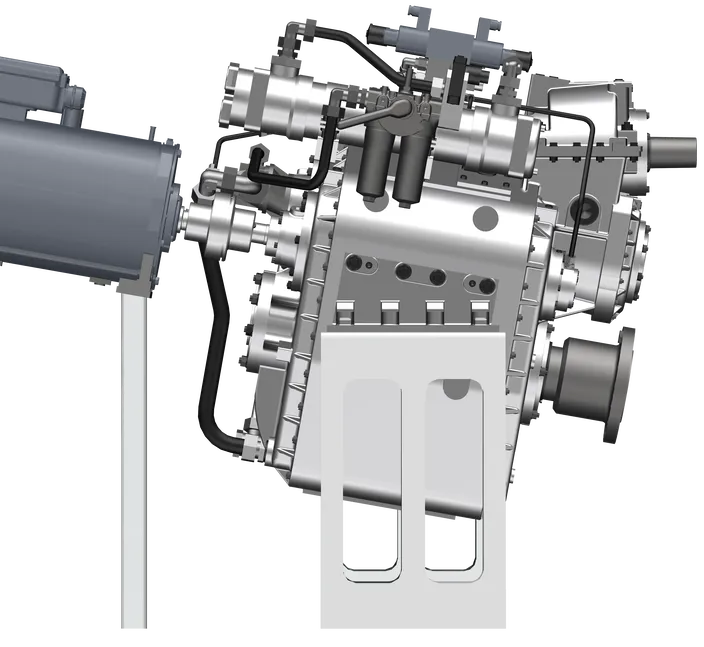

Photo: REINTJES GmbH
The Down Angle gearbox series WVSA first exhibited by REINTJES in 2016 will be presented at this year’s SMM maritime trade fair as a “developed to the next level” product. The power train and gear specialist will display a ZWVSA 440 U HS06.
In close collaboration with customers REINTJES upgraded its Down Angle construction, which enables a horizontally installation of the diesel engine while the propeller shaft is sloped downwards, by adding even more customer specific details.
Therefore the product naming ZWVSA 440 U HS06 exactly stands for:
Z Zweigang (two speed gear) W Wende-Leichtgetriebe (reverse reduction gear in light weight design) V Achsversetzt (offset between input and output shaft) S für schnelle Schiffe (for fast vessels) A in Down-Angle-Ausführung (in Down Angle design)
440 Achsabstand (center distance in mm)
U Antrieb und Abtrieb auf derselben Seite (input and output shaft on same side)
HS Hybrid System (Hybrid system included)
06 60 kW E-Motor (60 kW electric motor)
These additional product details have already been installed in a real vessel. Furthermore the installation of the Fast Clutch 200 solution would be possible on this gearbox which enables fast shifting times in less than two seconds.
