Rudder-integrated electric drive replaces combustion inboard or sail drive, no need for thrusters | Maneuverability, power generation while sailing and minimal weight | Hanse 315 is the first sailing yacht by a major manufacturer with an industrially produced electric drive
Technology cooperation for new sailing yacht drive
Rudder Drive, the new electric propulsion system for sailing yachts developed by Torqeedo together with the large-scale boat builder Hanse Yachts and rudder manufacturer Jefa, combines outstanding maneuverability and minimal weight with a powerful emission-free motor.

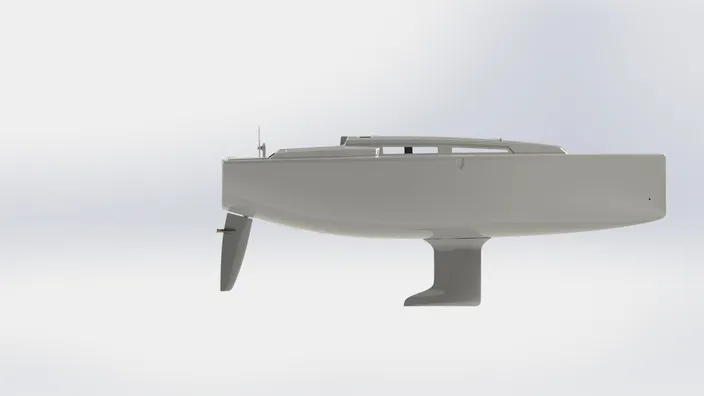

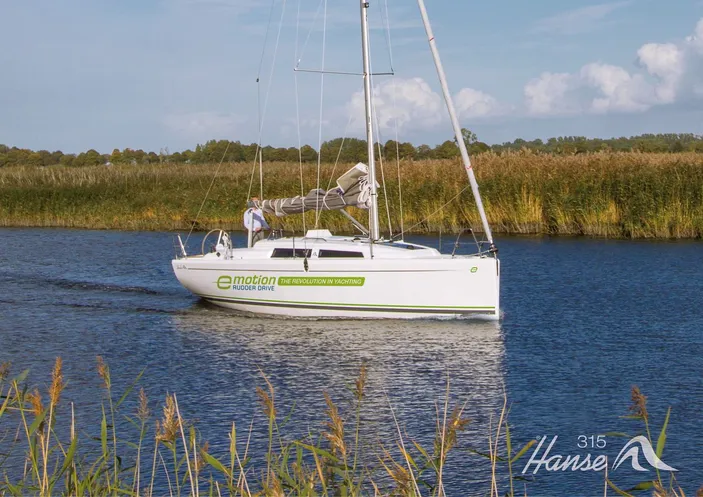

The core of this innovative concept is the proven and specially adapted Torqeedo Cruise 4.0 with folding propeller, designed in to the rudder blade itself. The streamlined system replaces the combustion inboard or saildrive and removes the need for a separate thruster on the new sailing yacht Hanse 315 e-motion rudder drive, which debuts at the end of October.
Outstanding maneuverability
Due to the unique rudder placement of the 4 kW (8 horsepower equivalent) Torqeedo electric motor, the motor can apply efficient, directional thrust. The Jefa rudder blade’s range of motion was extended to a total of 100 degrees. Demanding maneuvers can now be accomplished without a separate thruster. While motoring, the yacht can spin on its own axis – both forward and in reverse. While docking, the stern can easily be maneuvered into the proper position. This is highly useful in windy conditions or in narrow slips.
Exceptional endurance with minimal weight
Making 4.5 knots with calm seas, the new Hanse 315 equipped with four lithium-ion batteries has a range of up to to 30 nautical miles – enough for all European inland waters and many coastal waters. At lower speeds, the range is significantly increased. The Rudder Drive can also be used with two batteries if a shorter range is required. The maximum speed is 6.1 knots – nearing the maximum speed of the diesel version.
